Fault list and tuning parts: The Whyte Elyte Evo RS in the endurance test

Too much battery kills the flow, too little power is annoying on the climbs. It was clear to me that if I was going to ride an e-mountainbike through everyday life for a year, it had to be light on its feet - but still be able to really push when the going gets tough. The Whyte ELyte Evo RS hits this sweet spot pretty much exactly. With a 400 Wh battery, the latest generation Bosch CX motor and a slim 20.9 kg weight, it is not a shuttle replacement, but a real fun machine for after-work laps, technical trails and occasional altitude battles with a range extender. The bike has been my faithful companion since March 2025 - and I can already say: this thing has character.

1st update / 600 km: Inventory

Light e-MTBs are too weak for me as a shuttle replacement. However, a classic power bike was also out of the question for me as an endurance tester. Why? Fat batteries with 750 watt hours or more are now standard. If you add in downhill-heavy components and a manageable budget, many models easily weigh over 24 kilos. That's where the fun stops for me. But fortunately, e-mountainbikes like the Whyte ELyte Evo RS are now in vogue. According to our definition, these "lightweight power bikes" weigh around 20 kilos, offer full motor power and rely on medium-sized batteries - perfect for my area of use.

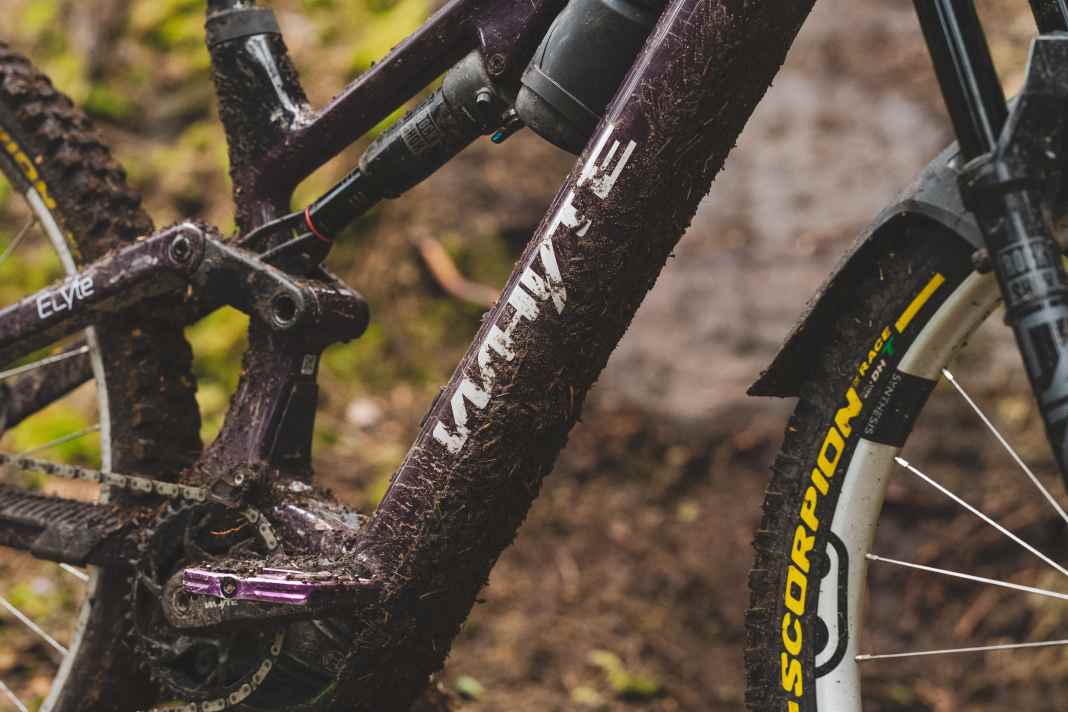

The fifth-generation Bosch CX and the permanently installed 400 battery provide enough oomph and range for fast laps after work. The weight is absolutely bearable. And for longer rides, the ELyte Evo RS comes with the appropriate range extender (1.5 kg). With the extra 250 watt-hours, you can even ride up to 2000 metres in altitude - easy!

The development focus of the Whyte

Imagine placing a hammer vertically on the floor. If the heavy end is down, it can be easily moved back and forth, but is still firmly anchored. This is precisely why the ELyte Evo deliberately dispenses with a larger, integrated battery and instead relies on the comparatively small battery in combination with the range extender. As with the Hammer, the centre of gravity is very low, which makes handling more natural and intuitive. Coupled with the balanced proportions of the main frame and rear triangle as well as the high-traction suspension, the riding characteristics of the Whyte have literally mesmerised me over the last three months. It feels planted on fast straights, but is just as easy to manoeuvre over twisty trails. Manuals and bunnyhops? Easy.

• Click here for the new Whyte ELyte Evo presentation
• Auch exciting: the big brother with a large integrated battery!

Like all our test bikes with a motor, the ELyte Evo RS also had to hold its own in our standardised range test. With the integrated 400-cell battery and the 250 watt-hour range extender, the Whyte covered 1548 metres in altitude at an average speed of 13.6 km/h until power failure. This means that under the same conditions, the candidate climbs minimally slower and slightly less high than a Bosch CX bike paired with a classic 600cc battery (approx. 1600 metres in altitude / 14 km/h).

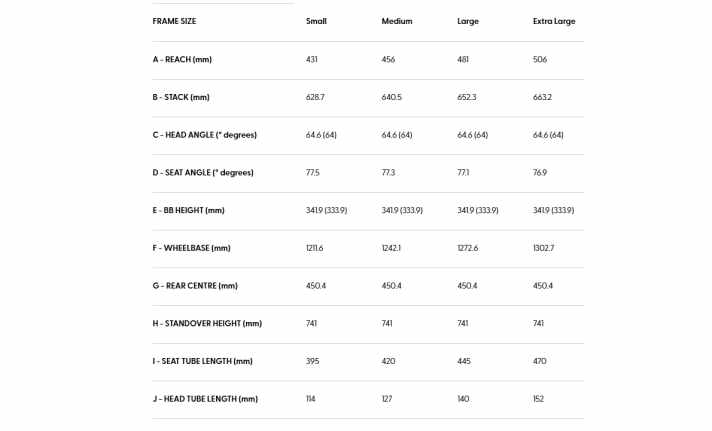

The geometry of the Whyte ELyte Evo RS

The head angle is a modern 64.6 degrees and the reach in frame size M is a moderate 456 millimetres. If you rotate the off-centre shock bushing by 180 degrees, the geometry flattens out by 0.6 degrees and the bottom bracket is even lower. Thanks to the steep seat angle of 77.3 degrees and the 450 millimetre chainstays, the e-bike copes well with the power of the large CX motor, even on steep climbs, and can be confidently manoeuvred through key sections.

First defects and tuning measures

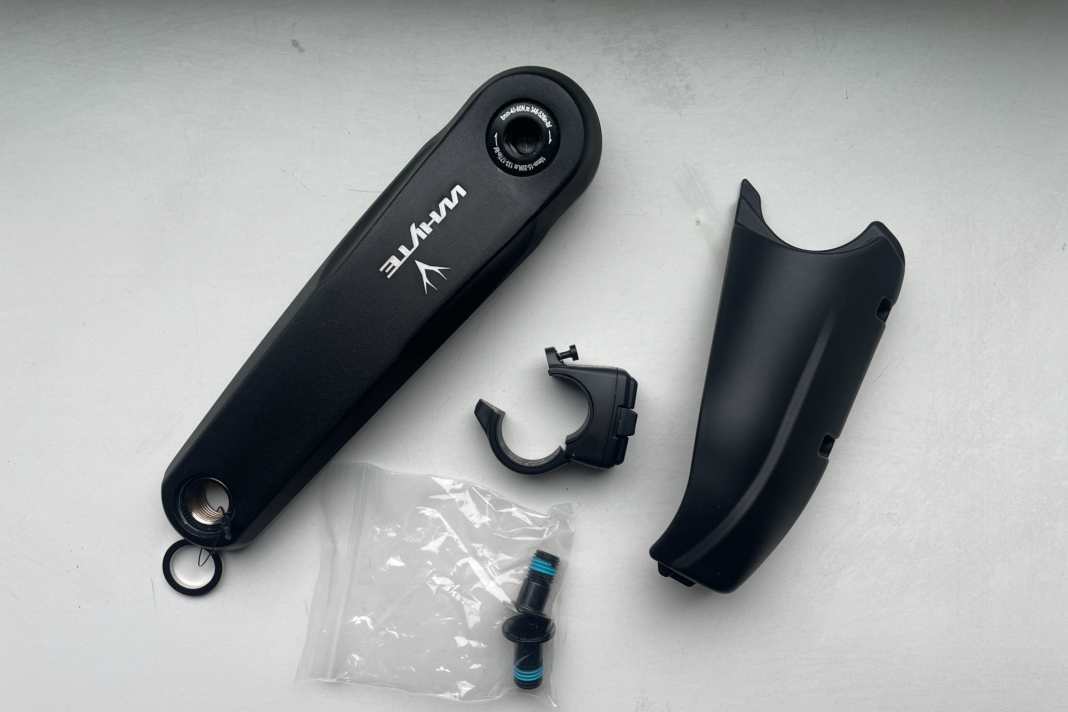

Even before the first ride, I upgraded to more stable downhill tyres, handlebars with a huge rise and my favourite grips. You know: personal preferences and all that. From then on, I rode the Whyte exclusively on challenging terrain. It goes without saying that defects are inevitable. The broken mini-remote, the bent crank and the cracked plastic motor cover are normal signs of wear and tear. However, I was disappointed that the WTB rear wheel lost its first spokes after just 300 kilometres. That's why I'm currently riding a different pair of test wheels.

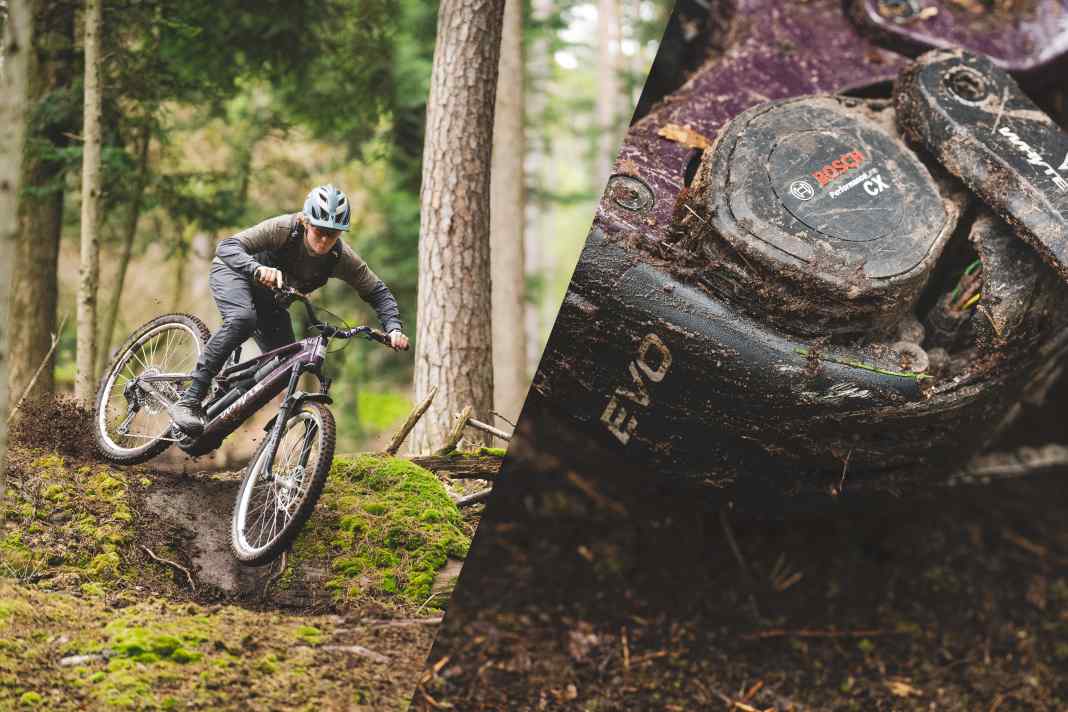

Interim summary by Max Fuchs, BIKE editor

The way the Whyte currently stands, the handling of the bike is unrivalled. The geometry is perfectly balanced, conveys a lot of confidence both uphill and downhill and has a super intuitive riding feel. Any peculiarities that require an adapted riding style or familiarisation time? Not a thing. The drive system hits the sweet spot in my eyes. Thanks to the small integrated battery, the weight remains within limits in favour of the riding experience - similar to classic light e-mountainbikes. Nevertheless, the system with the range extender and the full-power motor delivers the full E-MTB experience with a good range and powerful thrust as required. Now that the wheels have emerged as the biggest weak point, I'm curious to see how well the other components will survive the upcoming kilometres - especially the drive unit and the frame including the hardware. We'll keep you up to date!

2nd update / 686 km: defective engine suspension

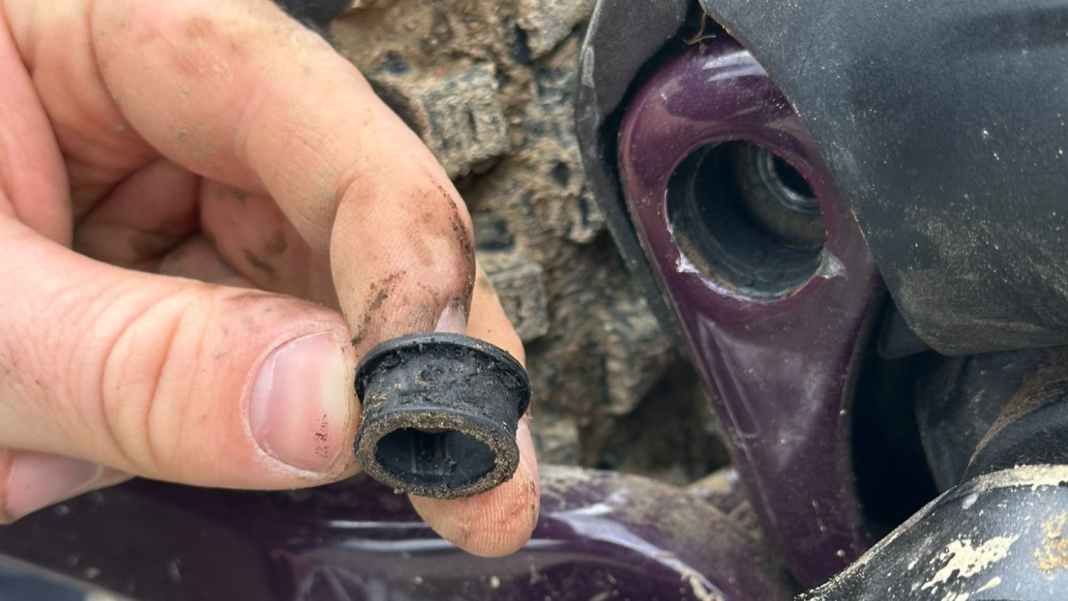

What was initially noticeable as an unusual amount of flex in the bottom bracket area turned out to be a defective motor mount on closer inspection. As with all Bosch bikes, the motor on the Whyte is fixed in the frame with two bolts, each of which runs through a rubber bush on the non-drive side. On my long-term test bike, these bushings were already so badly worn that both bolts had visible play. I didn't expect such signs of wear at this mileage. Whyte has now sent me four replacement bushes - two of which I will install straight away. The other two will serve as a reserve in case the bushes continue to wear out at 600 kilometre intervals.

Engine loose - solution in sight

Even before installing the new sockets (see 1st update): Even when new, the original Bosch Performance Line CX bushings sit too loosely in the frame. The measuring gauge confirms the impression: 15.9 mm bushing meets a 16.3 mm wide seat. With this discrepancy, premature wear is inevitable. The frame manufacturer refers to the correct dimensional accuracy of the frame. The cause is therefore likely to be the bushes themselves.

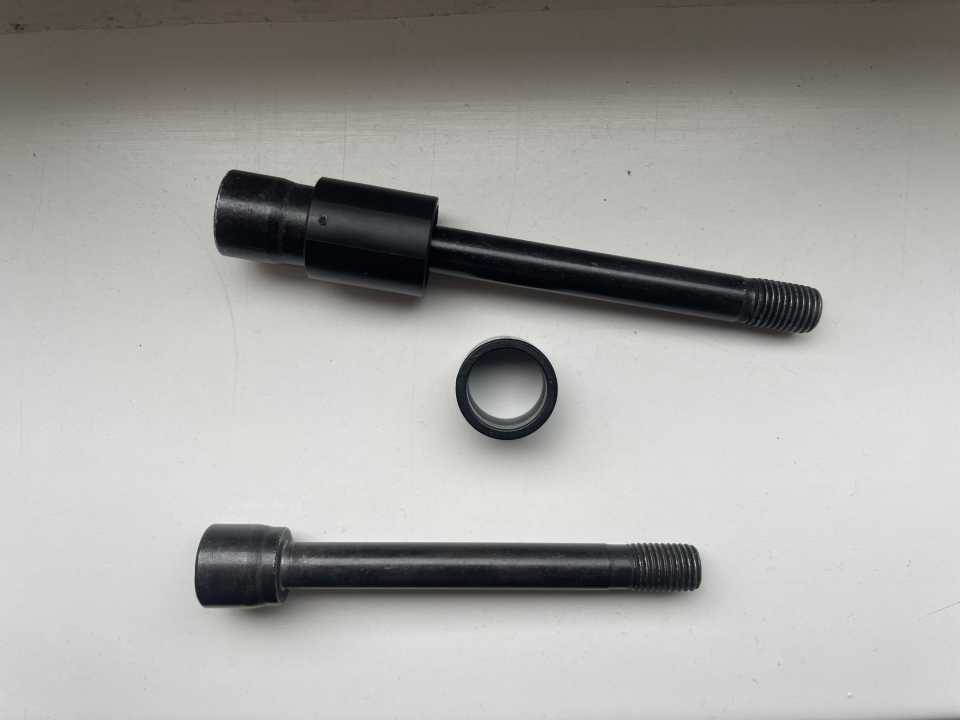

In the meantime, other test bikes with Bosch motors - fresh out of the box - also show the same problem: too much play in the motor suspension. An Instagram survey confirms this impression. Numerous responses from end customers report identical symptoms on their Bosch bikes. Our enquiry with Bosch brings clarity: the problem is known and a solution has been announced. From autumn 2025, revised bushings and bolts will be available free of charge from specialist dealers and Bosch Service. They are intended to better compensate for manufacturing tolerances and ensure a permanently tight fit of the motor.

>> You can read a detailed article on the tolerance problem of the current Bosch motors including a Bosch statement here!

The new hardware has also already been installed in our endurance test bike - with a noticeable effect: the motor finally sits tightly in the frame on the non-drive side, without any play. The new bushes are a clean fit and look much more solid. Just as it should be for an engine mount. The further course of the endurance test will show whether the update solves the problem permanently.

3rd update / 1094 km: More braking power for the Sram Code

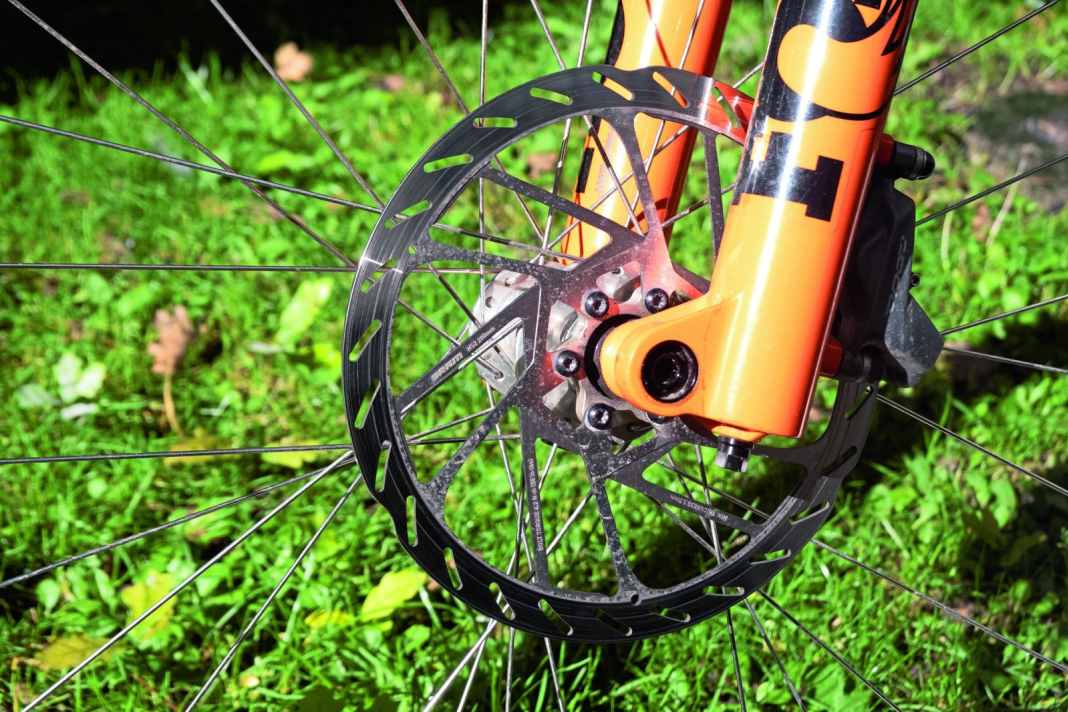

Sram Code brakes have too little bite on long descents - the whole test crew knows that. Moritz from Sram therefore recommended the following for my Whyte: remove the simple centre-line discs and fit HS2 rotors, 200 millimetres at the front and rear - 35 euros each. And lo and behold: with 0.15 millimetres more thickness, an optimised surface and better cooling, the codes are now finally taking a firm grip on the new brake discs.

4th update / 1358 km: two bent cranks

For the second time since the start of the endurance test, a Whyte crank arm goes bent - in the truest sense of the word. A wrong line, a big pedal hit on a root - and bang, the right crank is bent.

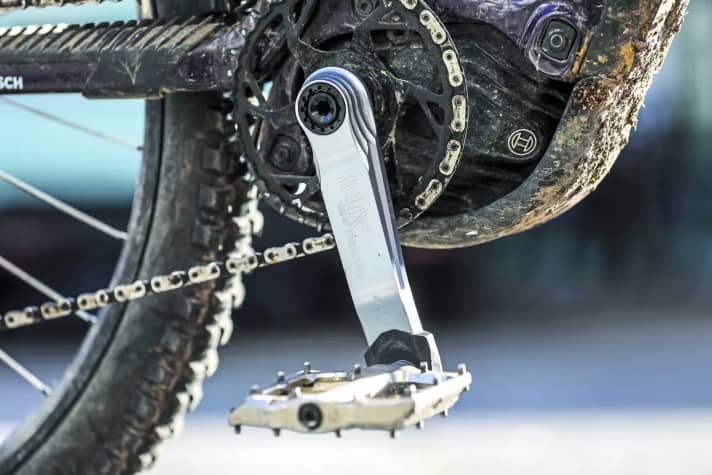

The cranks on the E-MTB serve as a predetermined breaking point to protect the drive shaft. In an emergency, they should bend before the motor is damaged. But as smooth as on the Whyte? Please don't! For fewer failures, a set of Helix Race cranks from Ethirteen is now fitted to the drive shaft. Let's see if they can withstand more.

Final cost breakdown

Conclusion from Max Fuchs

The handling of the Whyte Elyte Evo RS is still outstanding: thanks to the clever battery concept, the bike is nice and light and the centre of gravity is perfect - I've never experienced any other e-mountainbike as harmonious. That alone makes the Whyte worth recommending. But carefree riding fun looks different: The drive system proved to be an additional source of faults and a wear booster, and cost me a few nerves during the test. Parts such as the underpowered brakes, the wheels or the cranks were unfortunately not up to the Whyte's range of use.
