Gravel bike generation 2026: Brand new and already tested - Marin Headlands 3
Jan Timmermann
· 21.09.2025

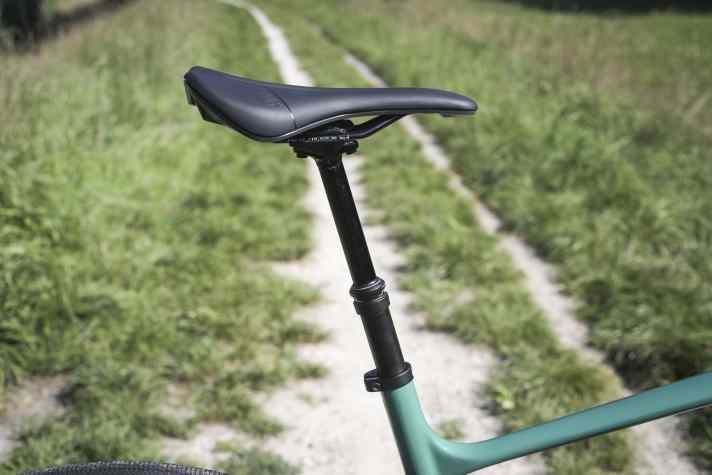

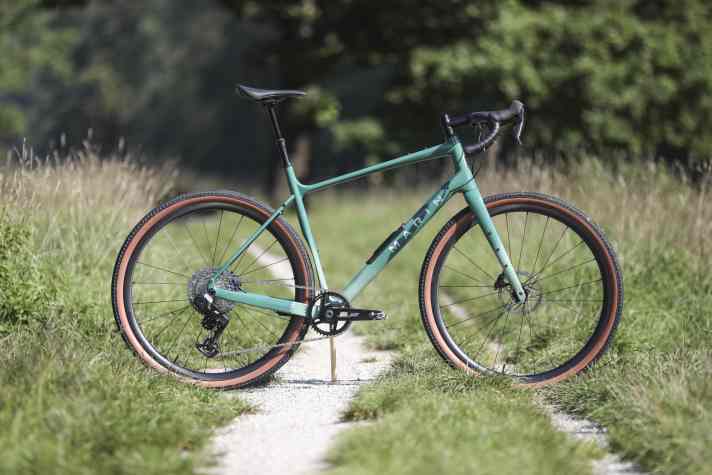

The Marin Headlands is something of a non-conformist among gravel bikes. Others can be prudish and conventional. The Californians' only carbon bike is exciting, progressive and, in the eyes of many a conservative roadie, probably pretty wild. The top model Headlands 3 combines a decent weight of less than ten kilos with many features that should appeal to gravel bikers. We have already been able to gather extensive test impressions of the bike, which was named after a coastal landscape near San Francisco.
The Marin Headlands 3 in detail
- Price: 4499 Euro
- Field of applicationGravelbike
- Wheel size: 700C/28"
- Tyre width: 45 mm
- Weight of complete bike9.7 kg (size 60)
- Number of bottle cage holders: 2
- Compatible with dropper post: yes
- Compatible with front derailleur: no

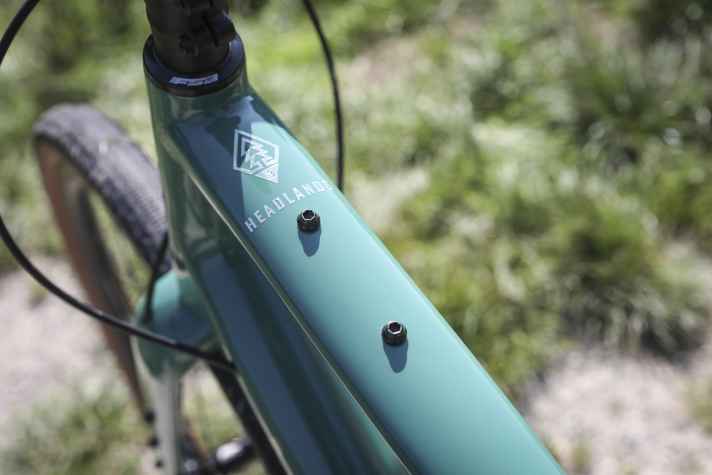

- Special featuresFrame storage compartment, mounts for mudguards and pannier rack, luggage mounts on top tube and fork, dropper post
Equipment
Marin offers the Headlands in three equipment variants and six different frame sizes (49/ 52 / 54 / 56 / 58 / 60). The carbon frame and fork set is also available for self-assembly. Our test bike bears the model name Marin Headlands 3, costs 4499 euros and is characterised by the following features:
- CircuitSram Force XPLR AXS, 1 x 13
- Cassette Sram Rival XPLR 10-46T
- Crank / chainring sizeSram Rival XPLR / 40T
- Brakes / disc sizeSram Rival XPLR / 160/160 mm
- ImpellersNovatec / Marin Carbon
- TyresVee Tire Quickstyk MPC
- Seat post / strokeTranzX Dropper Post / 110 mm
- Cockpit / length / width (upper/lower link): Marin / 100 mm / 500/590 mm
Data from the BIKE test lab

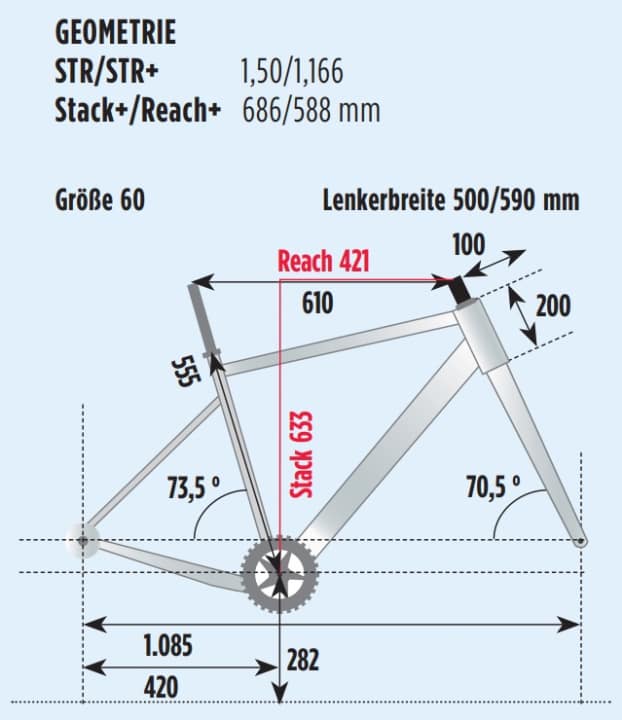

At BIKE, we go to unprecedented lengths to test bikes. We are the only trade magazine in the world to operate its own test laboratory. The data obtained supports our impressions from the practical test. When it comes to geometry data, we don't just rely on the manufacturer's specifications, but also use the laser measuring device ourselves.
- Complete weight9.70 kg (size 60, without pedals)

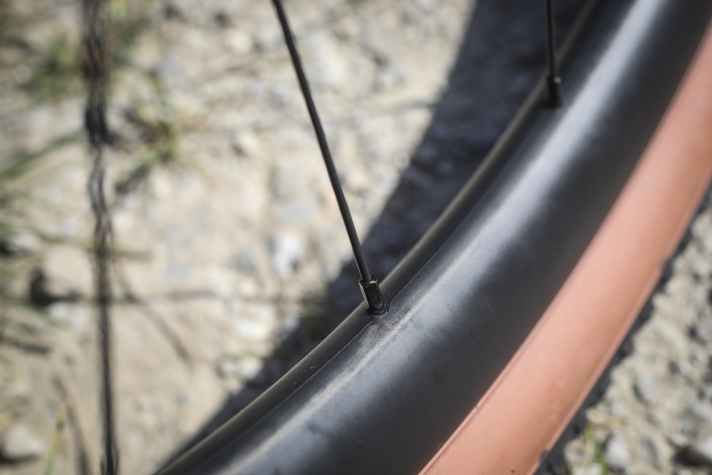

- Impeller weight3860 g (incl. tyres, tubeless milk and valves, cassette, brake discs, thru axles)
- Impeller acceleration2578 kg x cm² (the lower the value, the better the acceleration)
How the new gravel bike from Marin Bikes rides in practice

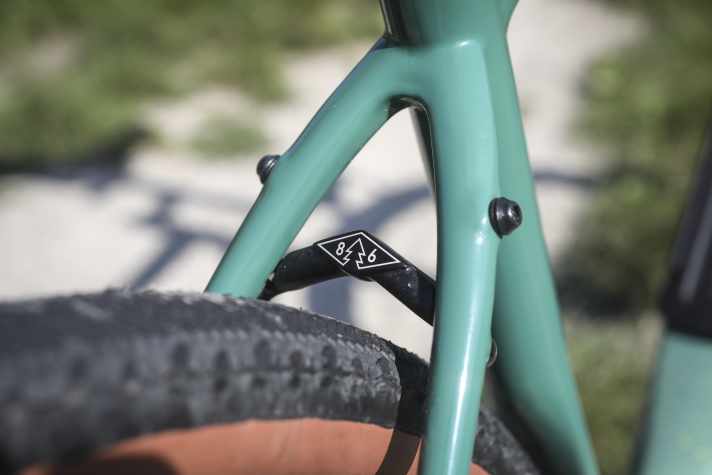

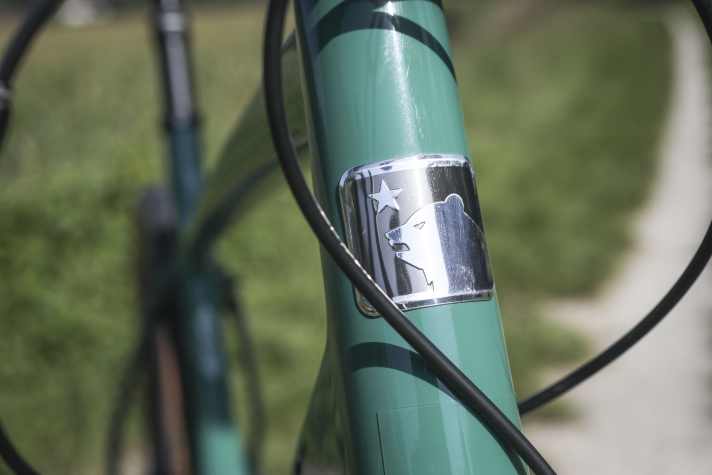

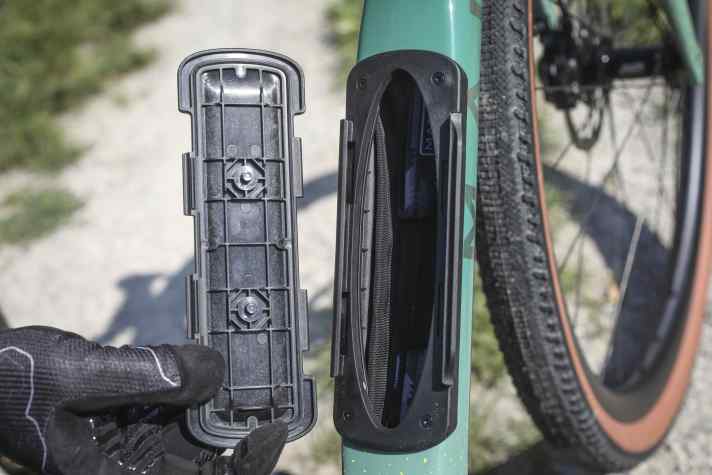

The cult factor of Marin Bikes can already be recognised by the metal bear emblem on the head tube: The heraldic animal of Marin County is also a must on the Headlands gravel bike. With its debut in 1986, the US brand was one of the very first to sell mountain bikes in series. Today, the label concentrates primarily on affordable off-road bikes with aluminium frames. The gravel bike in the Marin family is the only one that still comes with a carbon fibre chassis. We were able to test the 2026 new edition of the Headland as one of the first media in Europe. The bulky frame storage compartment in the down tube is a first. The oval opening under the plastic flap looks narrow in comparison. A maximum of 14 kilos of luggage can be bolted to all kinds of mounts. However, the frame only offers two mounting points for bottle cages.
The top model Marin Headlands 3 features carbon wheels and the new Sram Rival AXS XPLR wireless drivetrain sorts the gears. For a specialist brand, the price-performance ratio is impressive and even the weight with dropper post has nothing to hide. In typical Marin style, the look and geometry are unique. The paintwork is charming, the advertising claim is casual: "Made for fun". You don't even want to let the established standards for conservative gravel bikes inspired by road racers get to you.
Long but pleasing

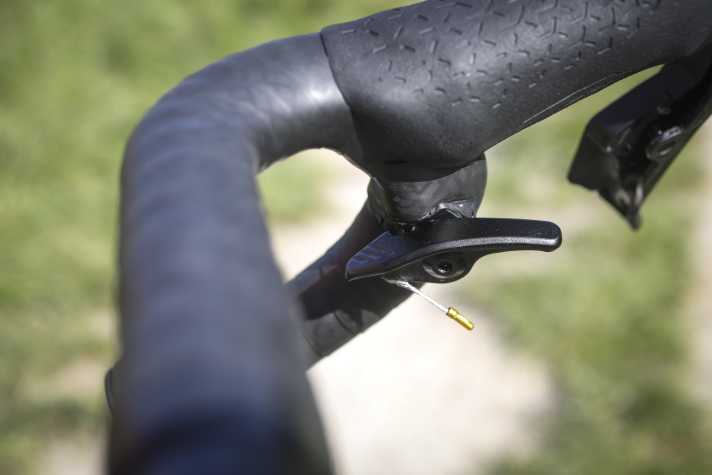

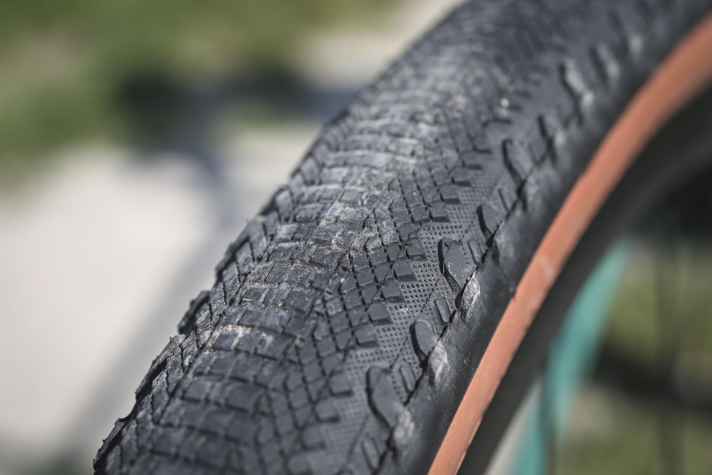

Once saddled up, the American sled looks strikingly long. After the Santa Cruz, the reach is the longest in the current gravel bike test field and is further lengthened by an opulent stem. There is also a wide control centre in the lower link position, which distributes the rider's weight over the bike. With large hands, the remote of the dropper post pinches uncomfortably on the thumb. With a lot of pressure on the front, the Headlands moves forward quickly. The wheels accelerate briskly and the freewheel sound is pleasing. When commuting with a lot of pressure on the pedals, the sporty, stretched riding position is impressive. However, there are definitely more comfortable bikes for relaxed cruises to the ice cream parlour. Sensitivity is required on steep ramps to get the full power to the ground. The Vee-Tire semi-slicks tend to slip under load and the unbalanced ratio of main frame to rear triangle length makes it difficult to find the right sweet spot for weight transfer.
The Marin Headlands is also bitchy on trail sections. The frame, fork and the thin handlebar tape on the aluminium cockpit offer very little damping. Vibrations are passed on to the rider unfiltered. Even the voluminous tyres can only compensate for this to a limited extent. With tired forearms, it's better to shift down a gear on bumpy sections. This is a shame, as the long Geo and the extra-wide handlebars also allow for a stable riding position at high speeds. The meagre damping is less of a problem on smooth gravel tracks. This is where the Marin really shines. In full throttle mode, it is a real mood-guarantor. With its lowered dropper post and potent wheelbase, the Headlands flies downhill safely, fast and fun. On classic gravel terrain, control is easy at any speed and the US gravel bike carries a lot of speed through the bottom of the valley to the next climb.

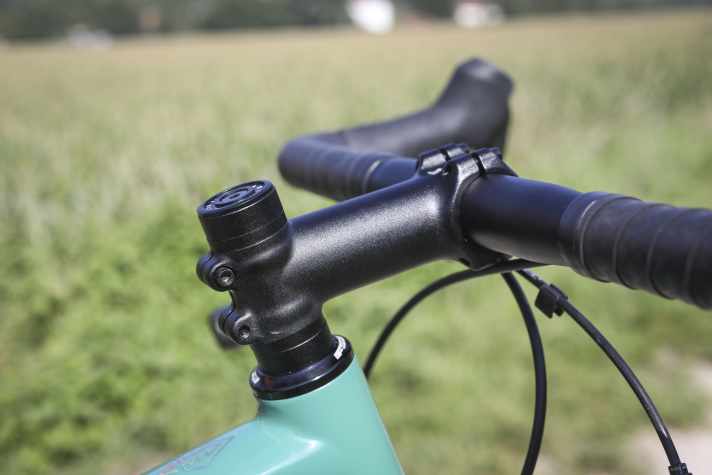

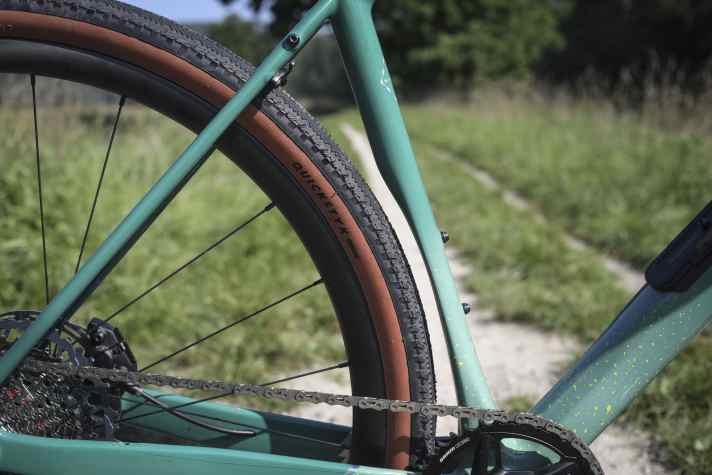

With the help of a cut-out in the seat tube, Marin has managed to realise extra-short chainstays on the Headlands gravel bike. Thanks to the compact rear end, the long bike goes round bends without much effort and can be expertly manoeuvred through S-curves. The steering angle seems perfectly chosen and combines smoothness with responsiveness. However, the front-heavy riding position stands in the way of direct steering behaviour, especially at low speeds. Our tip: fit a shorter stem.
Conclusion
With the new Headlands, Marin has managed to put a fun machine with a strong character on the gravel track. The progressive combination of a long front and short rear takes the carbon gravel bike from its MTB siblings and pushes the fun factor to a high level. Off-road, the low reserves of tyre grip and comfort put the brakes on. - Jan Timmermann, BIKE editor
Pro
- Good symbiosis of smooth running and cornering handling
- sporty character traits
- Convincing equipment package
Contra
- Little comfort and ergonomics in need of improvement
- Smooth tyres
- Only two bottle cages
