And the developers have absolutely succeeded with the 4060 Z ST. No other bike in the test field is so manoeuvrable, agile and fun to ride on the trail - without feeling nervous or unsafe. It is easy to get onto the rear wheel and manoeuvre nimbly around corners. A real trail bike! With its 140 millimetres of travel at the rear, it feels a little firmer and more direct than some of the other candidates. But if you give the bike a good spur, you will be rewarded with a lot of riding confidence, even in enduro terrain.

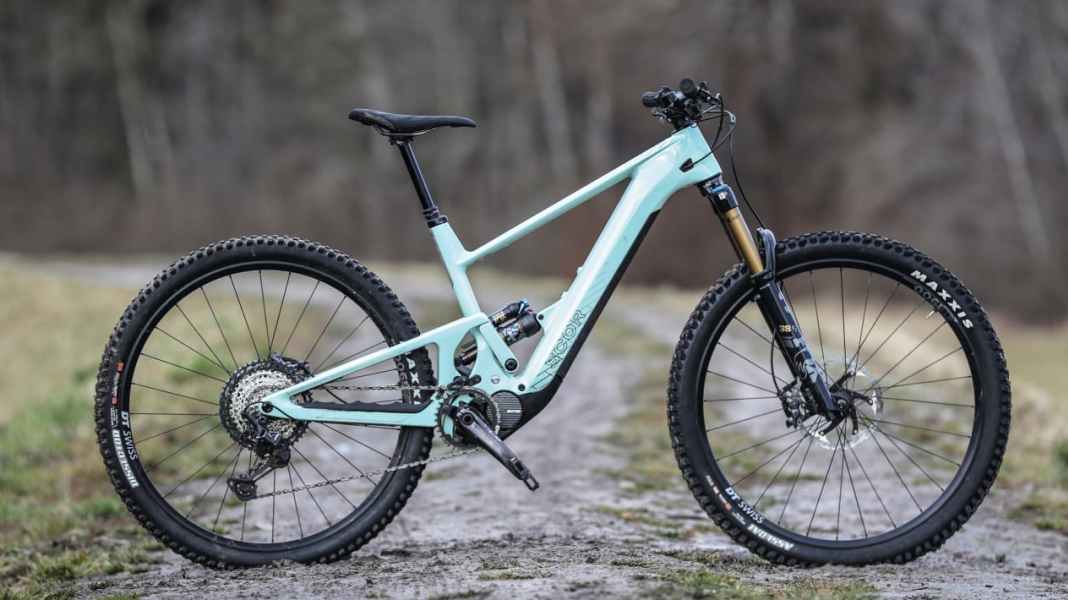

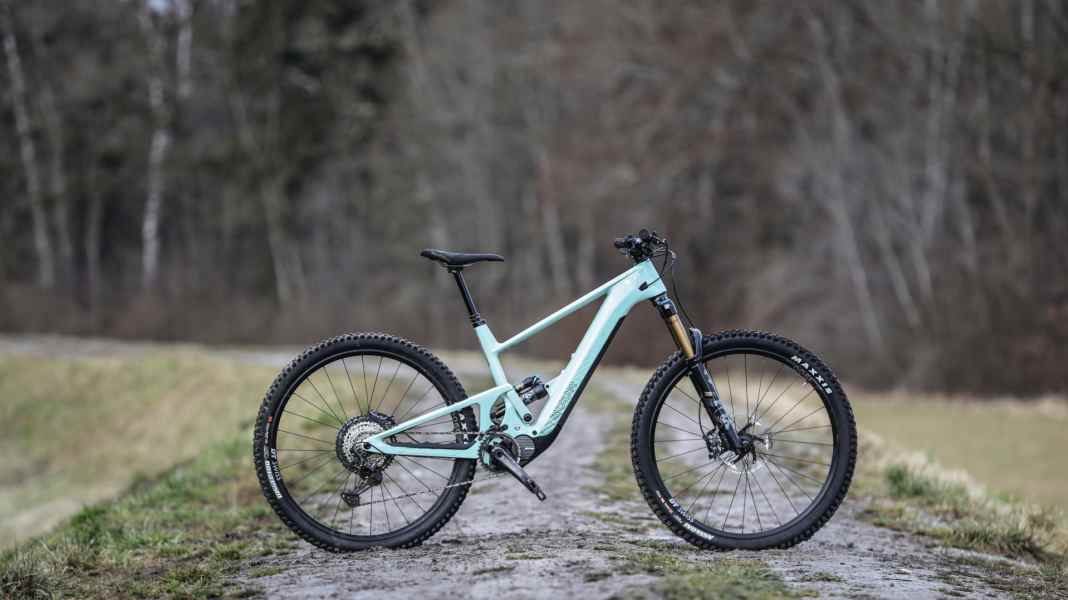

Conclusion on the Scor 4060 Z ST XT
Sporty, potent trail speedster for experienced riders. Agile and fun like no other bike, also due to its low weight. Good range, but nothing for leisurely excursions.
Technical data Scor 4060 Z ST XT
General information
- Price: 8299 Euro >> available here
- Reichhöhe 1): 1703 (+310) hm
- Average speed: 14.8 km/h
- Info: www.scor-mtb.com
Drive
- Motor: Shimano EP8
- Max. Torque 3): 85 Nm
- Battery 3) / weight 2)/ price replacement battery: Darfon, 726 Wh / 3993 g / 999 Euro
- Gear system: Shimano XT (12-speed)
- Translation (v. / h.): 34; 10-51
- Display / Size: Shimano SC-EM800 / 21 x 38 mm
Equipment
- Permissible total weight 3): 130 kg
- Fork / shock: Fox 38 Factory / Fox Float X Factory
- Suspension travel (f. / h.): 150 mm / 140 mm
- Telescopic seatpost: Bikeyoke Divine, 160 mm
- Brake / Disc Ø (front / rear): Shimano XT four-piston / 203 / 203 mm
- Wheels: DT Swiss H1900 Spline 30
- Tyres: Maxxis Assegai EXO+ / Dissector DD, 29 x 2.5"/ 2.4"

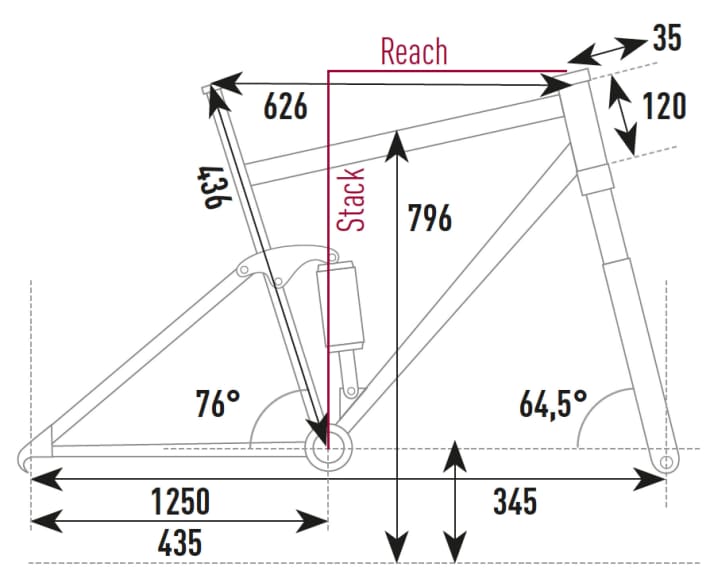

Measured values 2)
- Sizes / frame material: S / M / L / XL (tested L) / Carbon
- Centre of gravity height: 524 mm
- Handlebar width: 780 mm
- Crank length / Q-factor: 165 mm / 178 mm
- Reach / Stack: 474 mm / 635 mm
1) The reach height was determined during standardised test rides on an asphalt climb with a gradient of 12.2 percent. Highest support level, 150 watts pedalling power of the rider, rider weight incl. equipment 90 kg. The altitude metres in clearly reduced emergency mode are shown in brackets. The average speed refers to the journey with full assistance. | 2) Determined on the test benches in the EMTB test lab, weight without pedals. Battery weight may include screwed-on cover. | 3) Manufacturer's specification | 4) The judgement reflects the subjective impression of the testers and the results of the reach measurement and the laboratory tests. The EMTB judgement is independent of price.
The results of the Scor 4060 Z ST XT in the complete comparison test of the 9 E-All-Mountains from EMTB 1/2022 can be conveniently downloaded as a PDF below the article. The test report costs 1.99 euros.
Why not free of charge? Because quality journalism has a price. In return, we guarantee independence and objectivity. This applies in particular to the tests in EMTB. We don't pay for them, but the opposite is the case: we charge for them, namely tens of thousands of euros every year.
Downloads:
Florentin Vesenbeckh
Editor CvD
