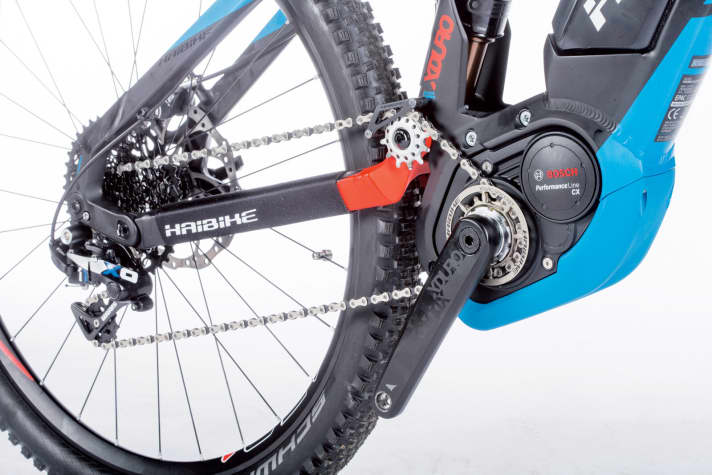

To ensure that the drive remains unaffected, the chain is guided (noisily) via a pulley. All other frame dimensions are also quite short for frame height M. This means you sit quite high on the bike. On steep climbs, you have to keep the front wheel firmly on the ground. Downhill and on singletrack, however, the short geometry is a lot of fun. The extremely sensitive suspension with enormous reserves plays a decisive role in this. On high-speed descents, the Xduro needs a steady hand.

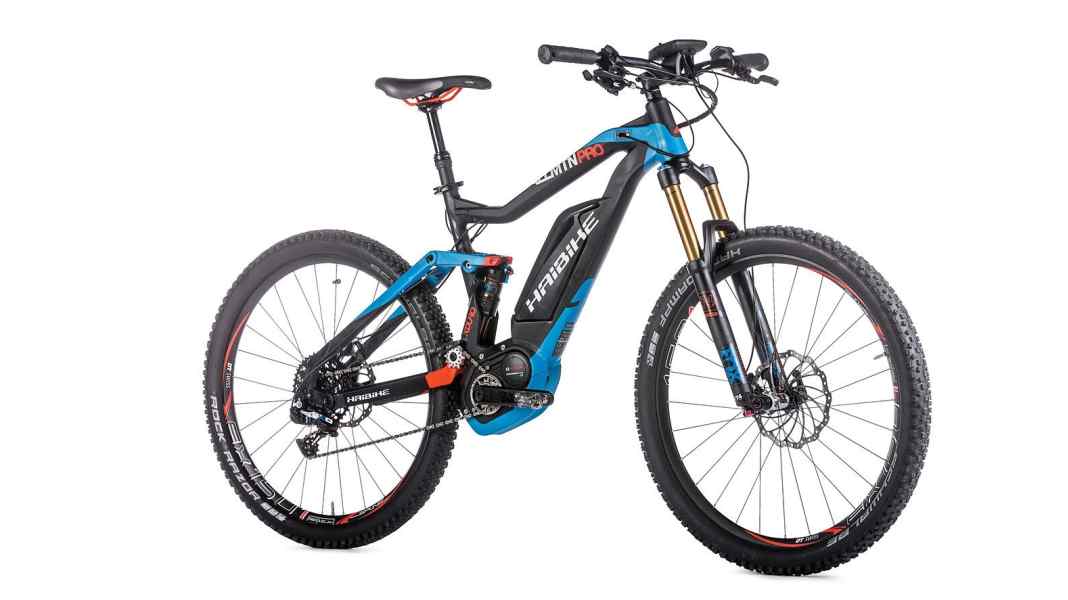

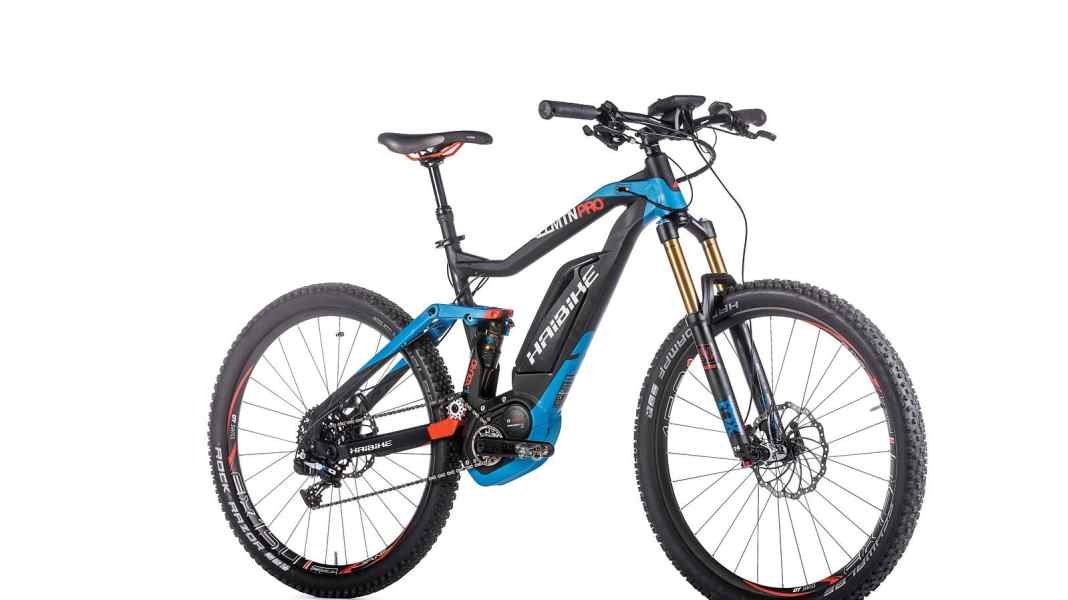

Conclusion: Chic, playful trail bike with slight weaknesses on the climbs. Downhill, the bike offers great fun potential thanks to its super suspension, but requires a more experienced rider.
Reach 1220 hm
Efficiency class A
Price 6799 Euro
Info www.haibike.de
Drive
Motor/position 250-watt mid-motor / Bosch Performance CX
Max. Torque 75 Nm
Battery Lithium-ion, 500 Wh
Switching/translation Front: 1x16 / rear: 11-speed Sram X01 (10x42)
Display/size Bosch Nyon / 4.25 inch
Software/stand Bosch standard / n. A.
Equipment
Sizes/frame material S, M, L, XL / Aluminium
Fork/damper Fox Float 27.5" CTD / 2016 Fox Float X2 Air
Telescopic support Kindshock LEV-DX
Brake/disc Ø (front/rear) Magura MT7 / 200,180 mm
Impellers 27.5 inch DT Swiss EX 1501 Spline
Tyres Schwalbe Hans Dampf EVO foldable 2.35
Measured values
Suspension travel 1) (front/rear) 150 mm / 150 mm
Weight/distribution 21.8 kg / 48:52 % (v/h)
Centre of gravity height 512 mm
Handlebar width 780 mm
Reach/Stack 396 / 604 mm
BB offset/Q factor -1 mm/178 mm
EMTB verdict: VERY GOOD / 219 points 2)
1) Manufacturer's specification
2) EMTB judgement: super (from 225 points), very good (from 205 points), good (from 185 points), satisfactory (from 165 points), with weaknesses (from 145 points), below inadequate. The judgement reflects the subjective impression of the testers and the results of the range measurement and laboratory tests. It is independent of price.
