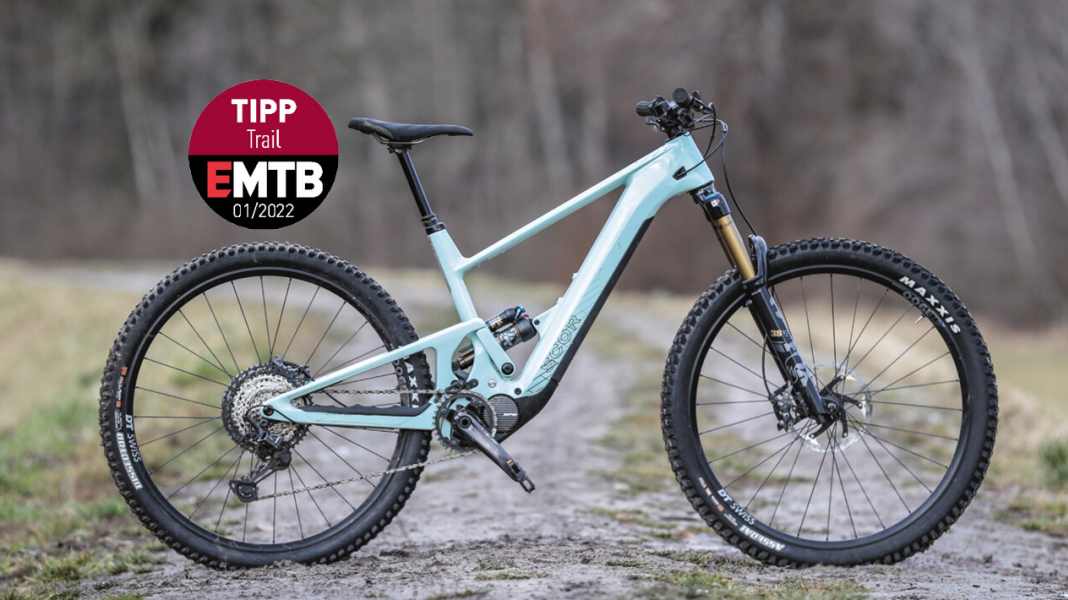

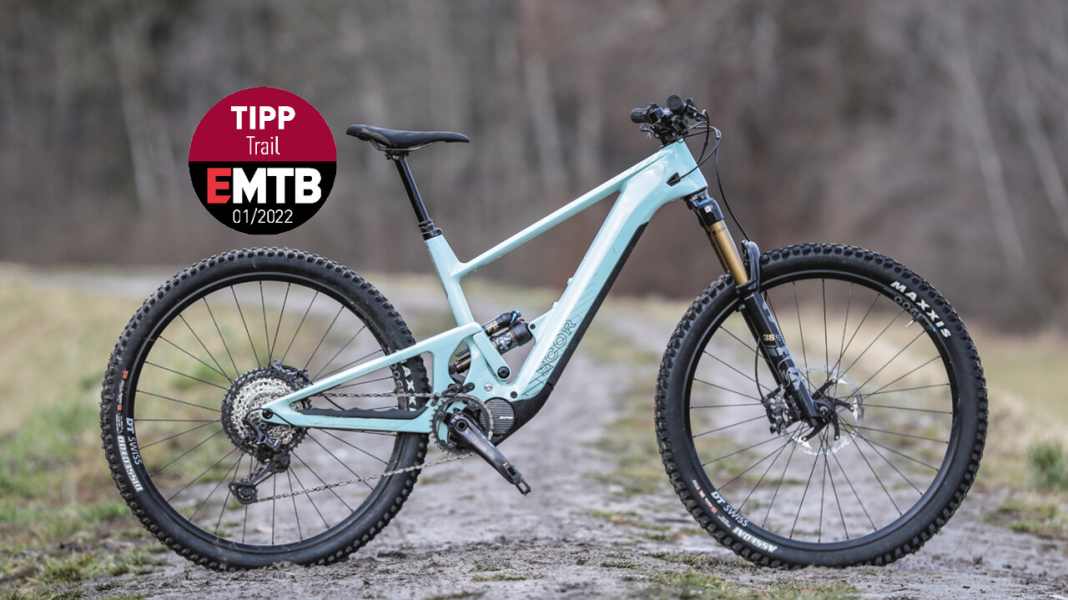

Attention fun guarantee! The young Swiss brand Scor focuses entirely on trail fun, downhill quality and good handling. And the developers have absolutely succeeded with the 4060 Z ST. No other bike in the Comparison test of all-mountain bikes up to 9000 euros in EMTB 01/2022 is so manoeuvrable, agile and fun to ride on the trail - without appearing nervous or unsure.

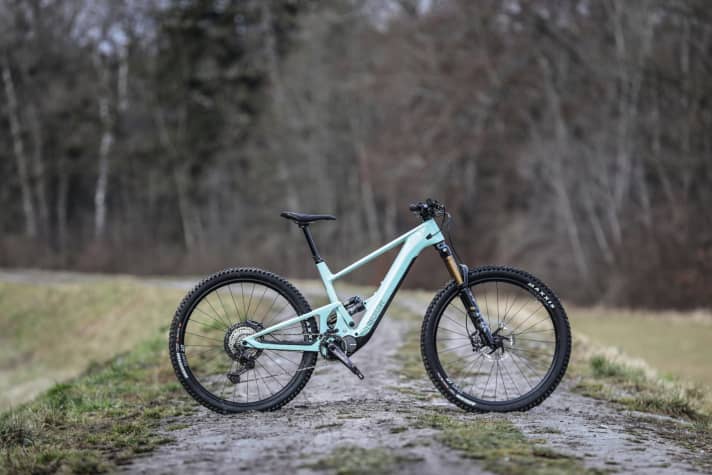

The Scor 4060 Z ST is easy to get onto the rear wheel and manoeuvre nimbly around bends. A real trail bike! With its 140 millimetres of travel at the rear, it feels a little firmer and more direct than some other candidates. But if you give the bike a good spur, you will be rewarded with a lot of riding confidence, even in enduro terrain.

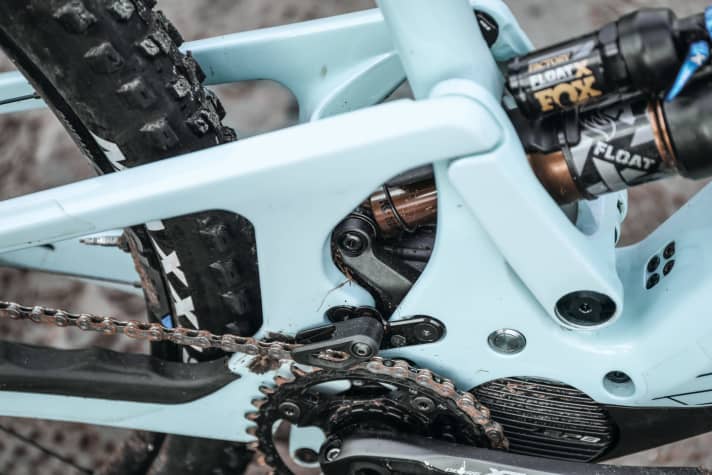

The excellent rear suspension works in a very defined manner and parries even rough impacts with ease. Only 140 millimetres? Hard to believe. At the front, the powerful Fox 38 Factory completes the first-class chassis, and the robust tyres provide additional safety. The low weight is also decisive for the top handling. Despite the massive fork, sturdy tyres, inexpensive wheels and 726 battery, the Swiss bike weighs in at 22.6 kilos. A strong value!

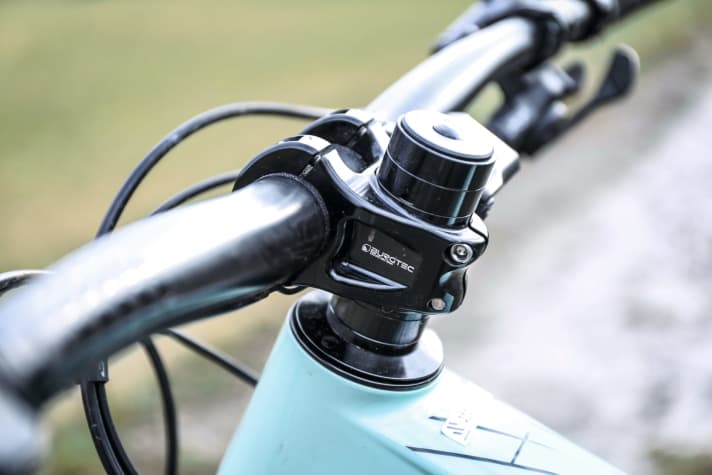

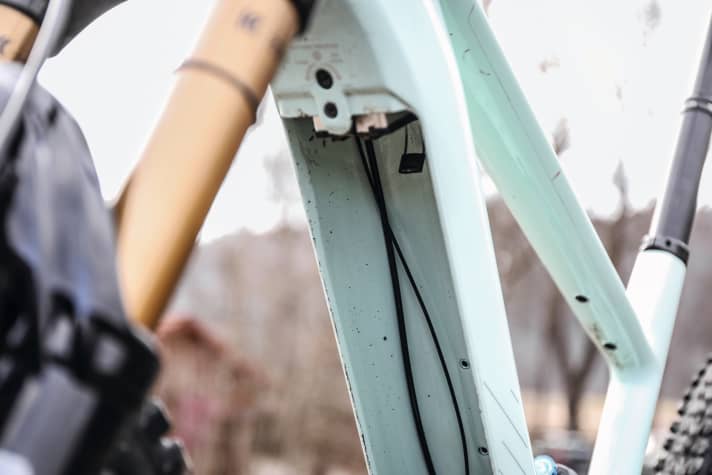

There are deductions in the climbing classification. The short chainstays and the compact riding position (the bike feels small, very short stem!) cause the front wheel to rise early. Steep climbs require skilful physical effort. Positive: The rear suspension also works excellently uphill. It remains active when pedalling, soaks up bumps greedily and is still high in its travel. This provides a lot of traction on the rear wheel. The equipment lacks glamour, but is very well chosen. Too bad: Our test bike was very loud.
Test summary of the Scor 4060 Z ST

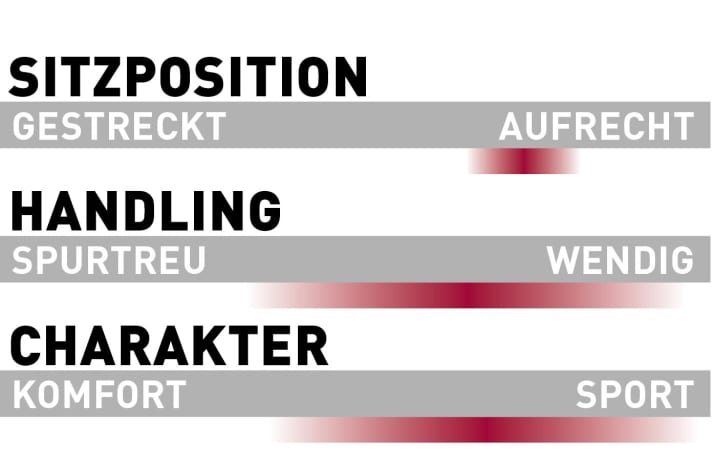

The Scor 4060 Z ST is a sporty, potent trail speedster for experienced riders. Agile and fun like no other e-bike, also due to its low weight. Good range, but nothing for leisurely excursions.
Technical data - Scor 4060 Z ST XT (2022)
Reach height¹ 1703 (+ 310) hm
Average speed 14.8 km/h
Price 8299 Euro
Drive
Engine Shimano EP8
Maximum torque³ 85 Nm
Battery³ / weight² / price Replacement battery Darfon, 726 Wh / 3993 g / 999 Euro
Circuit Shimano XT (12-speed)
Gear ratio (front / rear) 34 / 10-51
Display / Size Shimano SC-EM800 / 21 x 38 mm
Equipment
Max. System weight³ 130 kg
Fork/damper Fox 38 Factory / Fox Float X Factory
Suspension travel³ (front / rear) 150 mm / 140 mm
Telescopic support / lift Bikeyoke Divine, 160 mm
Brake / Disc Ø (front / rear) Shimano XT four-piston / 203 / 203 mm
Impellers DT Swiss H1900 Spline 30
Wheel size 29''
Tyres (front / rear) Maxxis Assegai EXO+ / Dissector DD, 29 x 2.5"/ 2.4"
Measured values²
Sizes / frame material S / M / L / XL / Carbon
Weight 22.57 kg
Centre of gravity height 524 mm
Handlebar width 780 mm
Crank length / Q-factor 165 mm / 178 mm

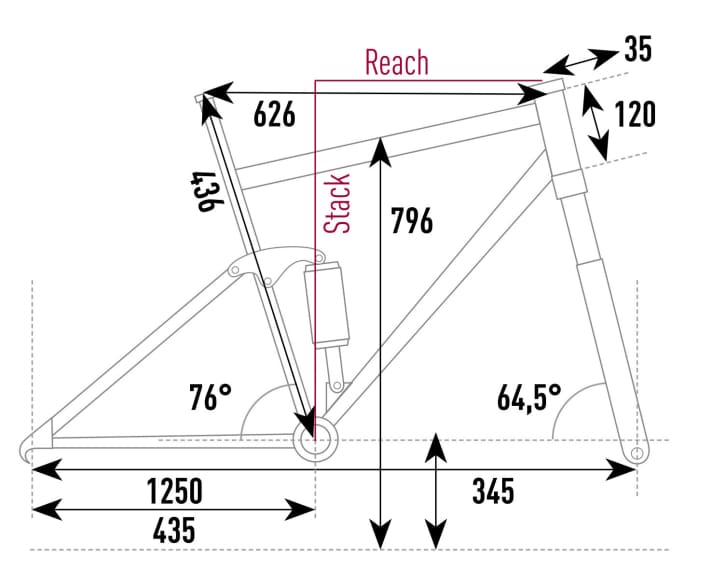

Reach / Stack 474 mm / 635 mm
EMTB test judgement⁴ VERY GOOD (8.4 points)
You can download the complete comparison test of the eight all-mountain bikes from EMTB 01/2022 as a PDF below the article. The test costs 2.99 euros. Why not for free? Because quality journalism has a price. In return, we guarantee independence and objectivity. This applies in particular to the tests in EMTB. We don't pay for them, but the opposite is the case: we charge for them - hundreds of thousands of euros every year.
You can find these eight E-All-Mountains up to 9000 euros in the comparison test
- Cube Stereo Hybrid 140 Action Team
- Focus Jam2 7.0
- Giant Trance X E+ Advanced Pro 0
- Mondraker Crafty RR
- Norco Sight VLT C2
- Scor 4060 Z ST XT
- Stevens E-Inception AM 9.7.2 GTF
- Storck e.drenalin.2 GTS
- Titici Everso Premium
¹The reach height was determined during standardised test rides on an asphalt climb with a gradient of 12.2 percent. Highest support level, 150 watts pedalling power of the rider, rider weight including equipment 90 kg. The altitude metres in clearly reduced emergency mode are shown in brackets. The average speed refers to the journey with full assistance.
²Determined on the test benches in the EMTB test lab, weight without pedals, battery weight incl. screwed-on cover where applicable.
Manufacturer information.
⁴The judgement reflects the subjective impression of the testers and the results of the reach measurement and laboratory tests. The EMTB judgement is independent of price. EMTB judgements: super (from 9.0), very good (from 8.0), good (from 7.0), satisfactory (from 6.0), with weaknesses (from 5.0), below insufficient.
