Rose shows prototypes of new all-mountain fullys in Riva

Ludwig Döhl

 · 29.04.2016

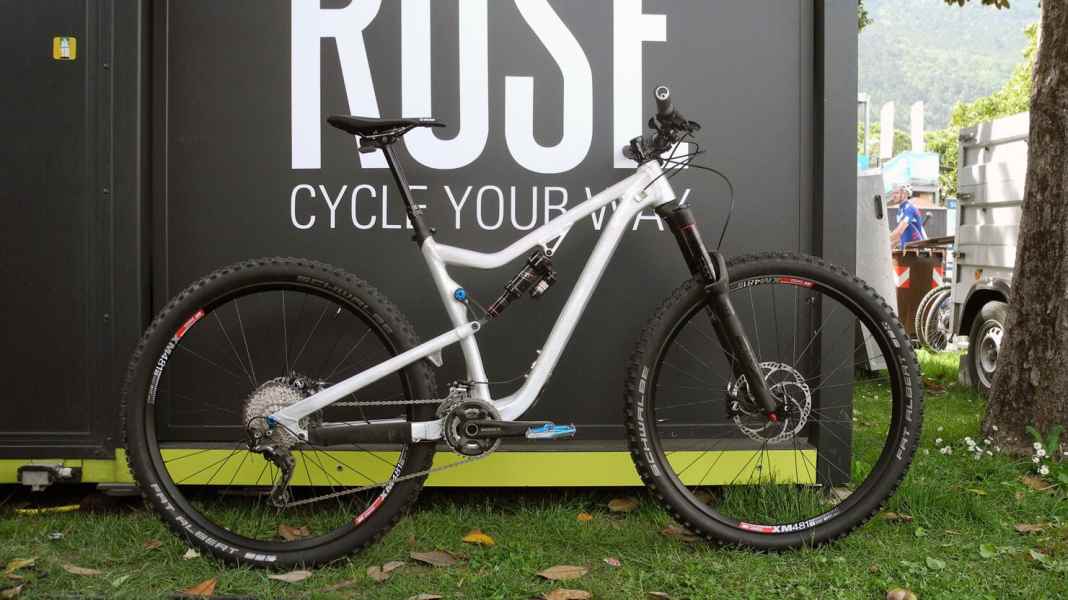

Rose shows prototypes of new all-mountain fullys in RivaPhoto: Ludwig Döhl

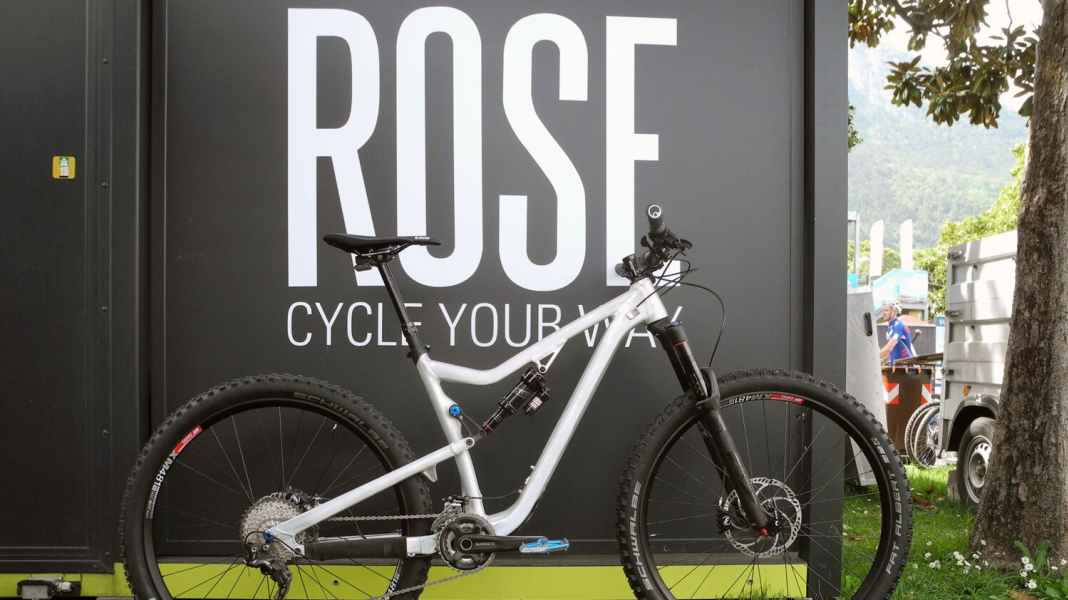

Rose shows prototypes of new all-mountain fullys in Riva
More travel, more downhill-orientated geometry, different wheel sizes and interesting details: Rose has given its all-mountain fullys Root Miller and Granite Chief a makeover.

The Rose Root Miller gets a facelift. The travel of the 29-inch trail bike has been increased from 130 to 140 millimetres compared to the current model. Rose has also given its Root Miller a 1.5 degree slacker head angle and the reach has increased by 15 mm. The longer main frame is compensated for by a ten millimetre shorter stem (from 60 to 50 millimetres). Thanks to the Boost standard, the wheels can easily be changed from 29 inch (photo above) to 27.5 Plus. The frame is compatible with both dimensions. According to Rose, a second wheelset will be offered at a reduced price.

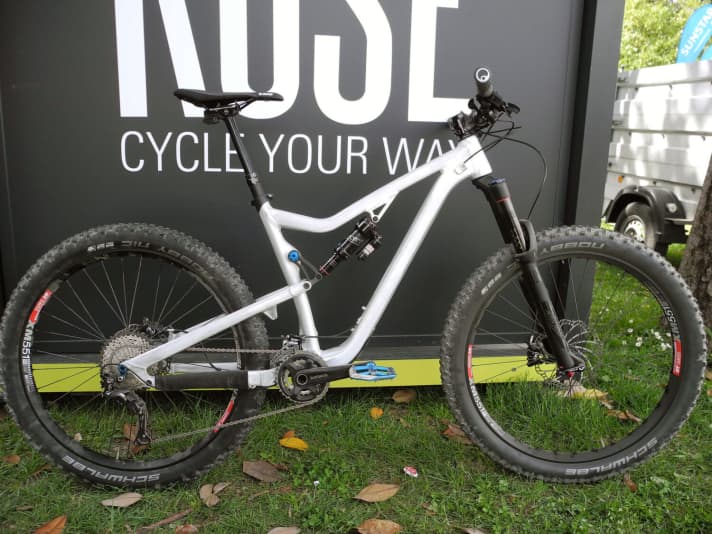

  The Rose Root Miller on wheels in Plus format.Photo: Ludwig Döhl The Rose Root Miller on wheels in Plus format.  The new metric Rock Shox Super Deluxe shock is designed to ensure top rear-end performance.Photo: Ludwig Döhl The new metric Rock Shox Super Deluxe shock is designed to ensure top rear-end performance.

Otherwise, the Rose engineers have mainly worked on more attractive detail solutions. The internal routing of the shift cables and brake lines has been optimised, frame protection against stone chips has been integrated into the down tube and the bearings on the rear triangle have been enlarged. A new shock absorber in the new metric dimension calms the rear triangle. For easier maintenance, Rose has retained the proven BSA thread standard.

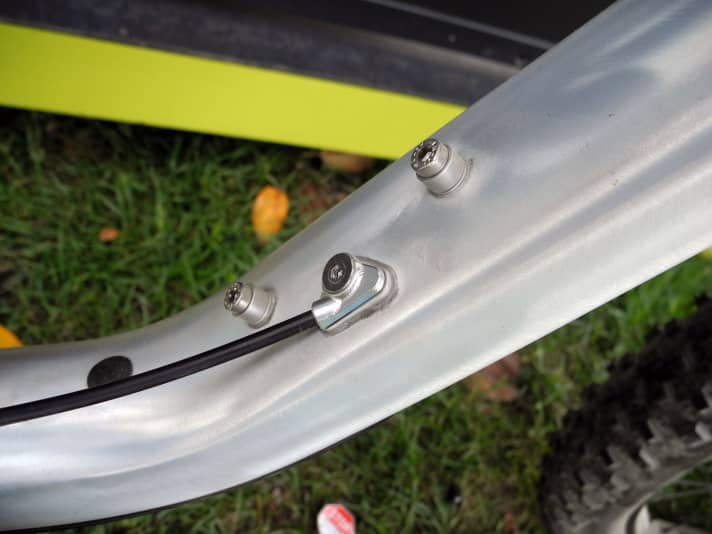

  The new cable guide holds the cables in place and is designed to prevent rattling.Photo: Ludwig Döhl The new cable guide holds the cables in place and is designed to prevent rattling.  From the lower outlet, the train runs directly to the side-swing derailleur.Photo: Ludwig Döhl From the lower outlet, the train runs directly to the side-swing derailleur.
How do you like this article?
  The rear cables and lines now run directly to where they should go. On the left in the picture is the frame guard.Photo: Ludwig Döhl The rear cables and lines now run directly to where they should go. On the left in the picture is the frame guard.

Rose Granite Chief 2016

The Granite Chief is also getting a makeover. As with the Root Miller, there is a new cable routing, the Boost standard and the metric shock. Unlike the Root Miller, it rolls exclusively on "simple" 27.5-inch wheels, but provides 150 millimetres of suspension travel.

  Rose Granite Chief prototype - here with Sram equipment.Photo: Ludwig Döhl Rose Granite Chief prototype - here with Sram equipment.

Both models should be available from autumn 2016.
