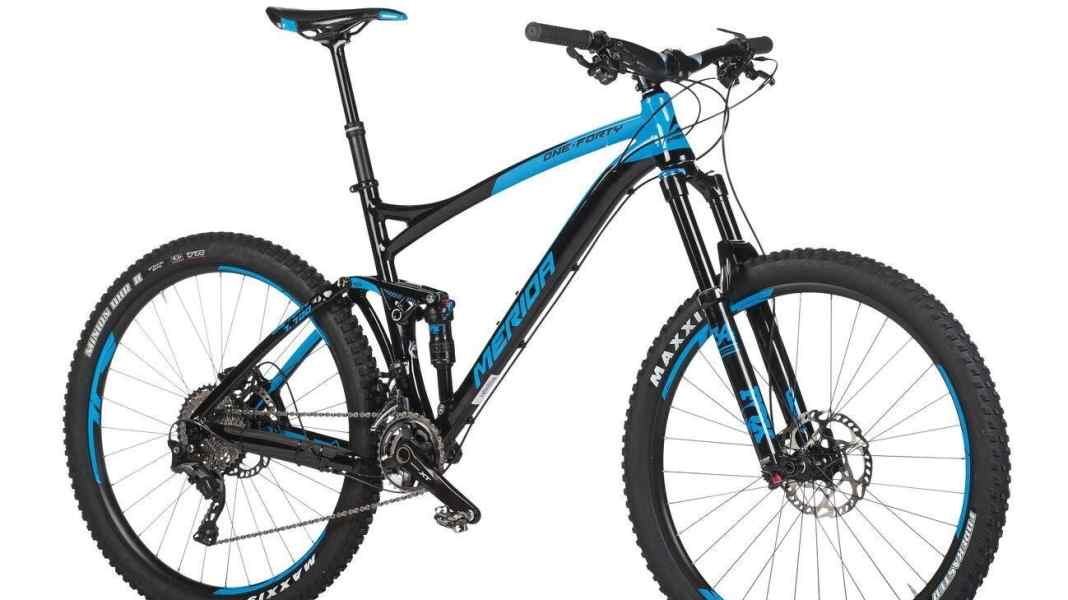

Merida One-Forty 700 on test

Peter Nilges

 · 02.07.2017

Merida One-Forty 700 on testPhoto: Daniel Simon
Merida One-Forty 700 on test
One-Twenty, One-Forty, One-Sixty. Merida's model names are not necessarily bursting with creativity, but they outline the suspension travel and the associated area of use as precisely as possible.

According to our lab measurements, the One-Forty even offers 145 millimetres at the rear and is the only bike in the Merida Fully range to date to use a VPP rear triangle. This works sensitively, but has noticeable pedal kickback on the small chainring. However, as soon as the chain is on the large chainring, the rear triangle remains absolutely smooth. At 3005 grams, the One-Forty frame is one of the heaviest in the test. Downhill, the Merida with its long wheelbase and slack head angle is very stable and secure. However, the long chainstays require a lot of physical effort when lifting the front wheel. The low bottom bracket ensures a low centre of gravity when cornering, while the Maxxis tyre combination offers plenty of grip. In open shock mode, it's easy to rush through the travel. Little sag and the shock in the middle position create the desired balance in the suspension. The equipment with a complete Shimano XT groupset including hubs is absolutely impressive.


Conclusion: The One-Forty presents itself as a smooth-running all-mountain bike with good downhill potential. There are lighter-footed bikes on the climbs.


The alternative: The next cheapest One-Forty costs 2099 euros. The 1x11 Sram NX groupset and Manitou fork are the main differences.

  Cube, Merida and Focus use the same third-party dropper post with an adjustment range of 120 to 150 millimetres and label the product with their own name. A more expensive Rockshox Reverb is only available from the three mail-order companies.Photo: Daniel Simon Cube, Merida and Focus use the same third-party dropper post with an adjustment range of 120 to 150 millimetres and label the product with their own name. A more expensive Rockshox Reverb is only available from the three mail-order companies.  Merida One-Forty 700Photo: BIKE Magazin Merida One-Forty 700  Merida One-Forty 700 - Characteristics: As the rear suspension has much less progression than the fork, the shock should be ridden in trail mode.Photo: BIKE Magazin Merida One-Forty 700 - Characteristics: As the rear suspension has much less progression than the fork, the shock should be ridden in trail mode.  Merida One-Forty 700Photo: BIKE Magazin Merida One-Forty 700
