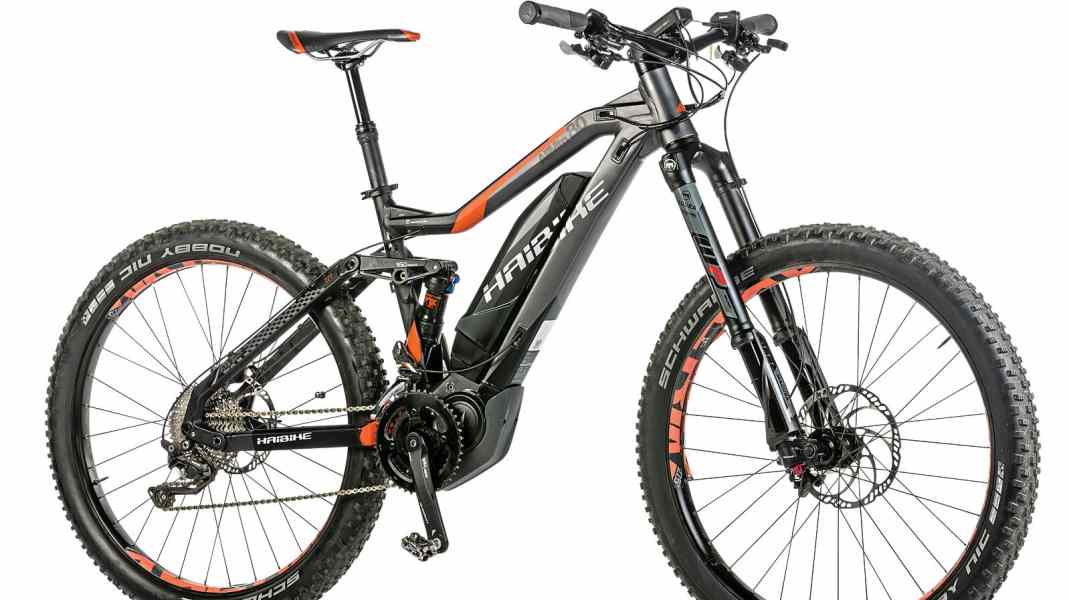

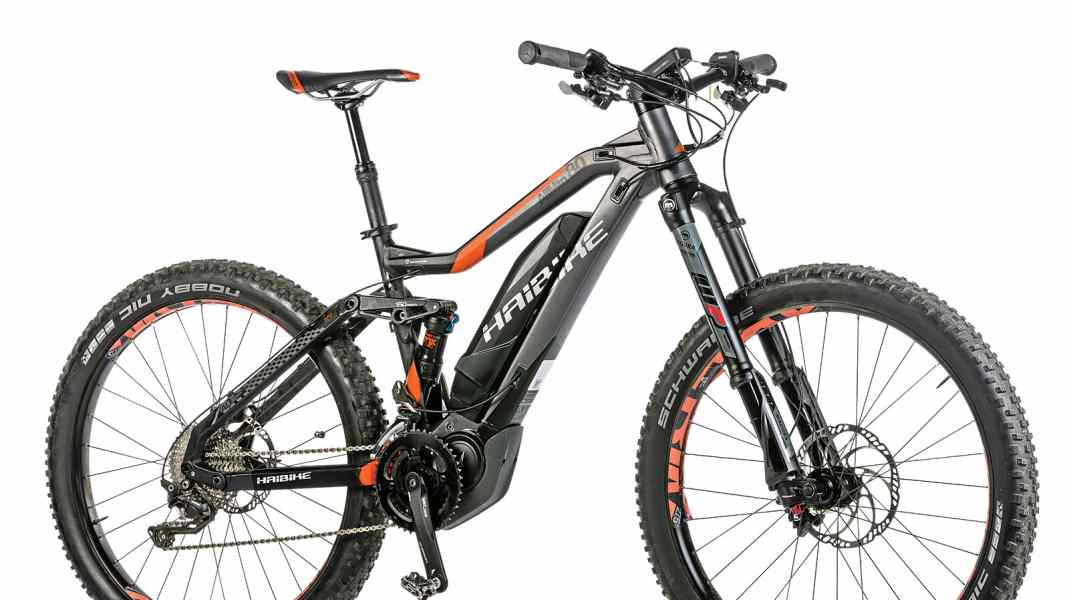

Significantly more modern geometry with short stays and longer front triangle (reach), new Yamaha PW-X motor with Bluetooth connection and display integrated in the stem, new fork and Plus tyres. The Schweinfurt-based company has made significant progress in terms of geometry. You sit more sportily and feel integrated into the bike. The motor is powerful, easy to operate and the integrated display is pleasing. The fork has to take a lot of criticism: Magura's Boltron single-bridge upside-down fork flexes much more than the competition from Fox and Rockshox - this significantly impairs the riding characteristics, especially the steering precision.
CONCLUSION The S-Duro has very good suspension, but loses points mainly due to the soft fork.
Reach 1353 hm
Efficiency class A+
Price 5499 Euro
Info www.haibike.com
Drive
Motor / Position 250 watt Yamaha PW-X / mid-motor
Max. Torque 80 Nm
Battery Lithium-ion, 500 Wh
Gearstick / transmission Shimano XT/SLX front 32, 46, rear 10-speed / 11-40
Display / Size Yamaha LCD / 3.5 inch
Software / status Yamaha / n/a A
Equipment
Sizes/frame material S / M / L / XL / Carbon with aluminium rear triangle
Fork / damper Magura Boltron / Fox Float DPS Performance
Telescopic support Kind Shock LEV-DX, 125 mm
Brake / Disc (front / rear) Magura MT5 / 200 / 180 mm
Impellers XLC Evo disc hubs, Rodi TR40 rims
Tyres Schwalbe Nobby Nic Plus 27.5x2.8 Trailstar
Measured values
Spring travel
¹
(front / rear) 150 mm / 150 mm
Weight / Distribution 23.1 kg / 47:53 (v/h)
Centre of gravity height 522 mm
Handlebar width 780 mm
Reach / Stack 419 / 618 mm
BB offset / Q factor -13 mm / 175 mm
EMTB JUDGEMENT GOOD²
2EMTB judgement: super (from 350 points), very good (from 315 points), good (from 280 points), satisfactory (from 245 points), with weaknesses (from 210 points), below insufficient.
The judgement reflects the subjective impression of the testers and the results of the reach measurement and laboratory tests. It is independent of price.
